Kizer Aluminium Soulframe 60

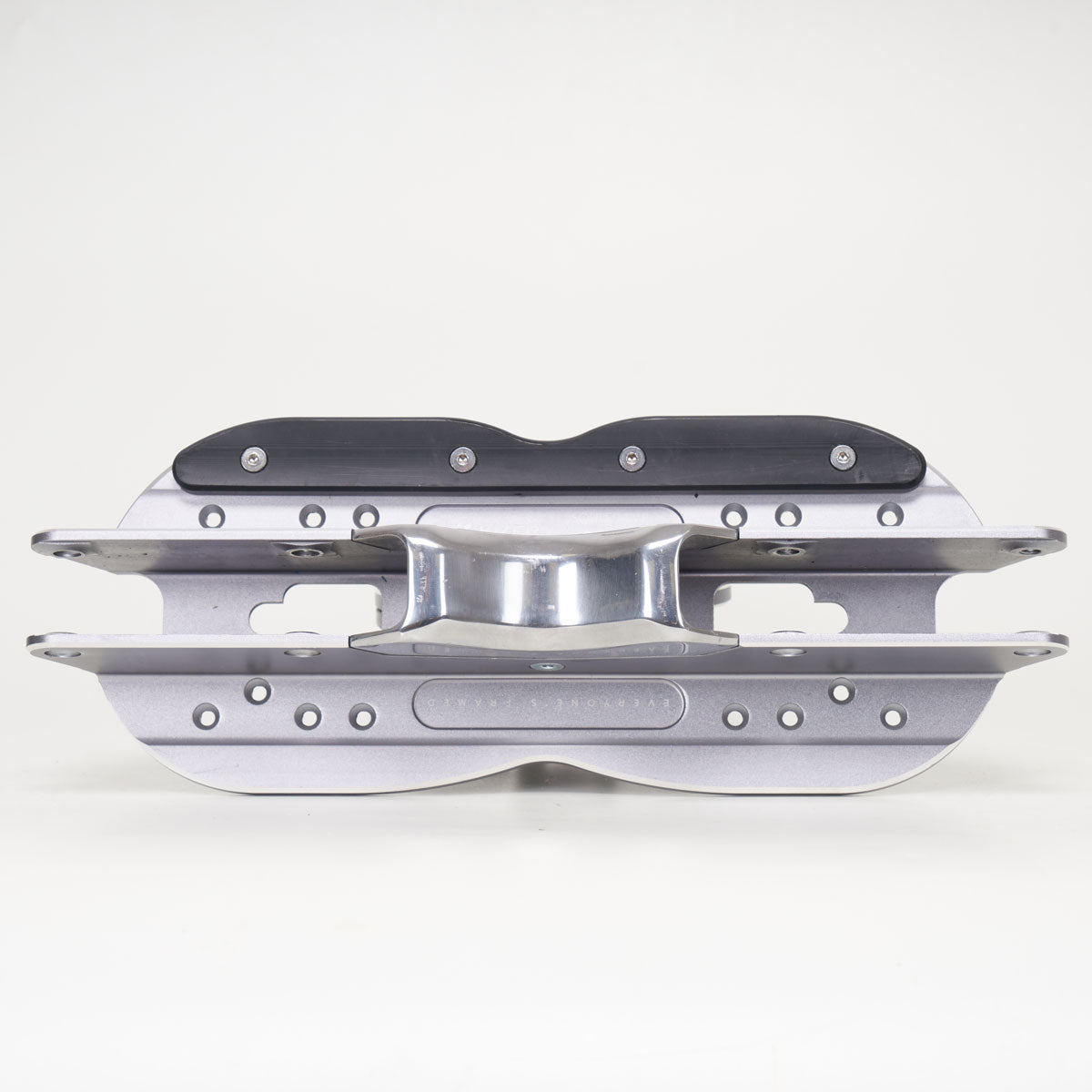

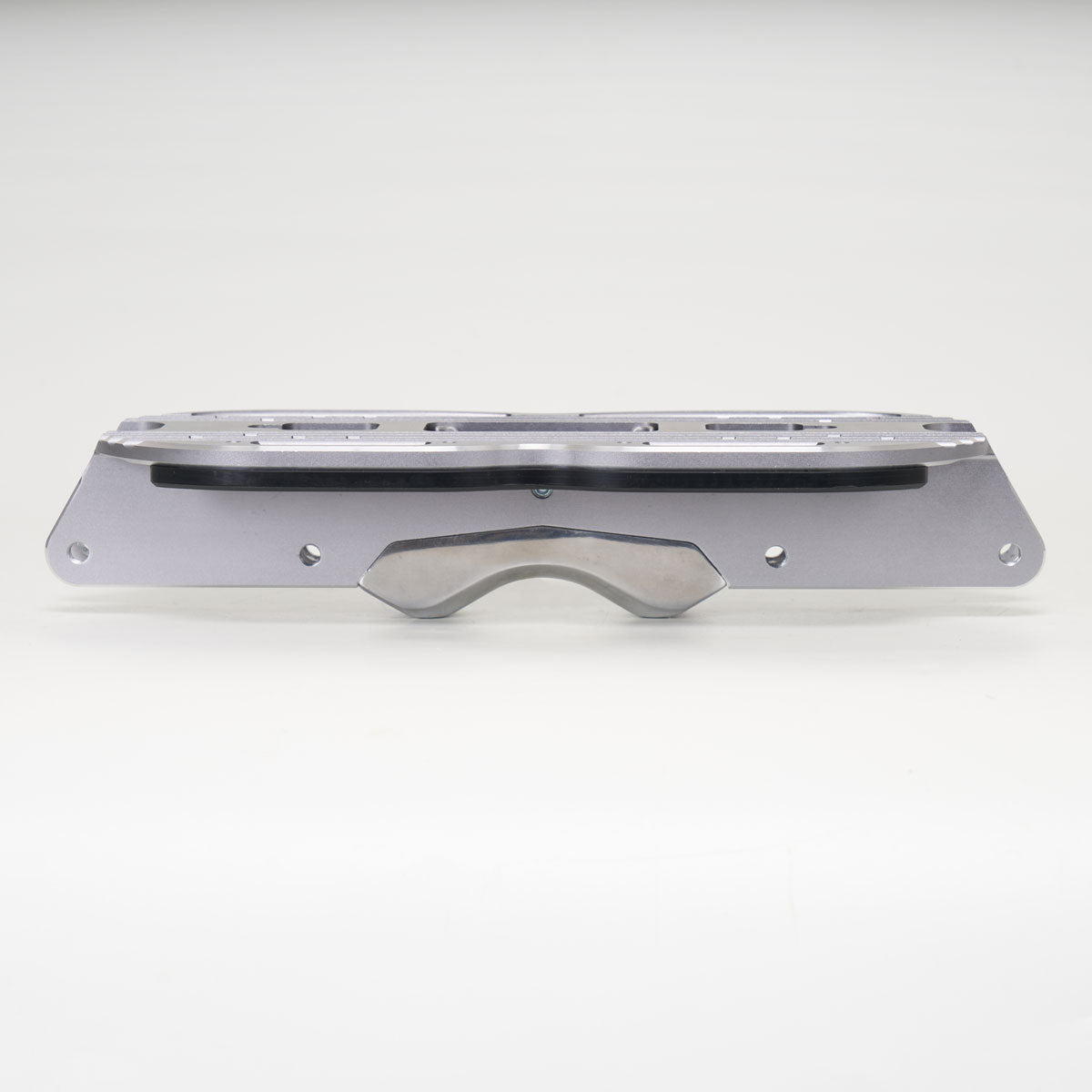

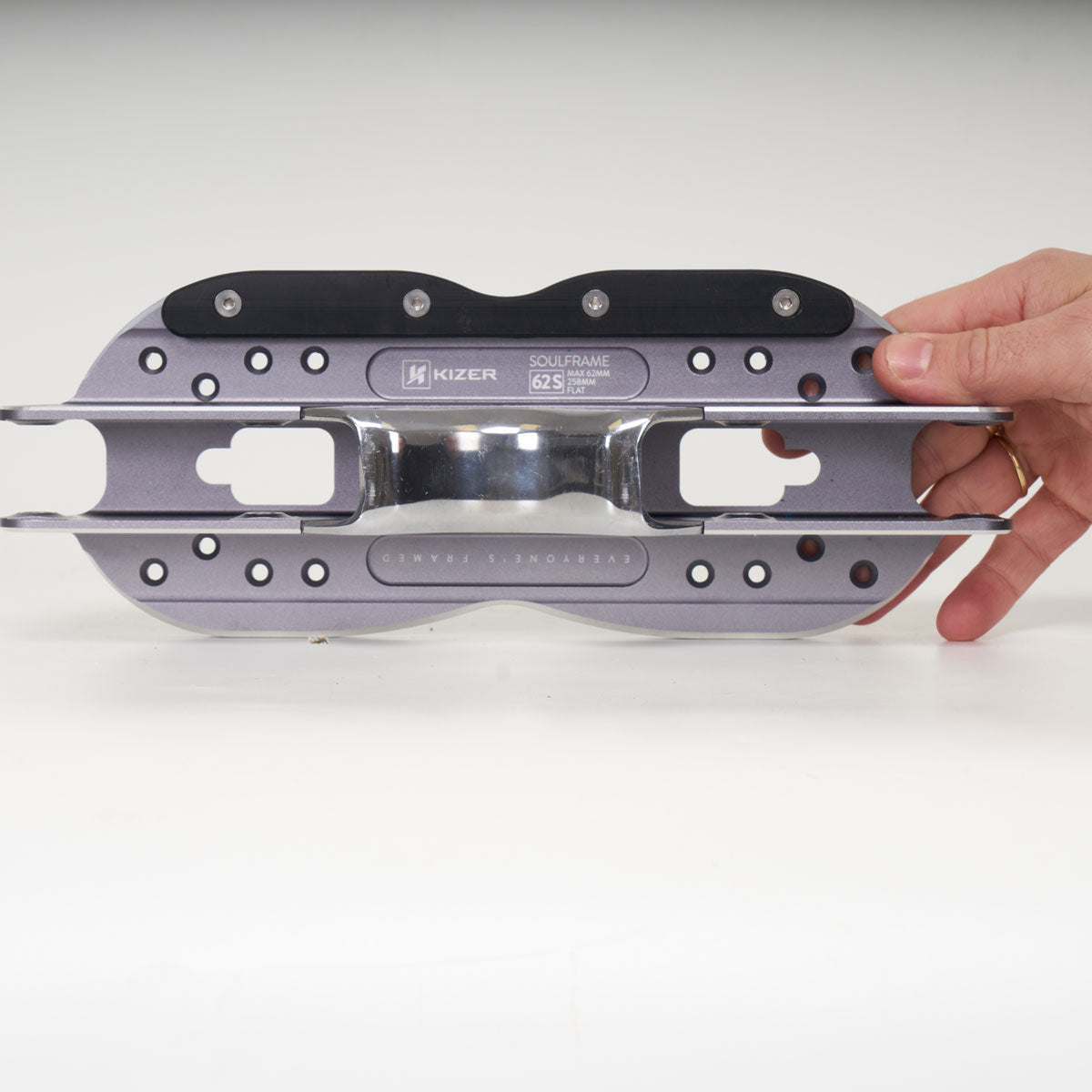

The Kizer soulframe 60 is a one-piece aluminium frame and soleplate compatible with flat boots only (read a list of compatible models at the bottom).

Kizer created the Soulframe 60 because the team were (allegedly) chopping the frame off their Aeon skates to use the Element II. So, what better way to appease the group of talented young skaters than to create an aluminium unibody concept piece?

The aluminium used is 6061 grade, aircraft-quality, so it's the best money can buy. The weight is kept low by a series of grooves on the top of the base. The sole and negative space is not too large, not too small. Perfect for all-around usability. The frame part is essentially the Kizer Element II 60, featuring a maximum wheel size of 62mm (flat) and the removable wide H-Block. A plastic slide plate features on the sole side, which will help when grinding on rough surfaces, though it is optional.

Salomon users' ears may prick up when we tell you that the Soulframe includes mounting holes that match the Salomon soleplates, which should increase the skate's longevity. Some boot parts will need shaving to allow the Soulframe to sit flat. Otherwise, the bolt positioning is entirely compatible.

Other compatible flat-based boots (listed below) only use UFS frame mounting points for attachment. So, only two screws, which is the same as most solekits with flat boots.

The Soulframe comes in two sizes; Small (252mm) for sizes UK5-UK8 and Large (270mm) for sizes UK9 and above.

The Soulframe is a seriously cool product. Who wants to see this in the old Kizer Diamond material? We do. Equally, aluminium will be seriously responsive and seriously fun to use!

List of compatible boots

USD
Carbon
Carbon Free
USD VII*

*The receiver plates for this model is longer than the width of the soleframe. This means multiple washers should be used to ensure the soleframe can be fully tightened to the boot. The use of extra washers means that the maximum compatible wheel size may be smaller than advertised.

Gawds
Franky Pro
Tim Franklin Pro*
Prado Pro Skate

*The receiver plates for this model is longer than the width of the soleframe. This means multiple washers should be used to ensure the soleframe can be fully tightened to the boot. The use of extra washers means that the maximum compatible wheel size may be smaller than advertised.

Seba
CJ 2
CJ 2 Carbon
CJ 2 Prime
SX Street
SX2


Trigger*
Beat
Dalnas

*The receiver plates for this model is longer than the width of the soleframe. This means multiple washers should be used to ensure the soleframe can be fully tightened to the boot. The use of extra washers means that the maximum compatible wheel size may be smaller than advertised.

Salomon
It requires a slight boot modification, but the Kizer Soulframe's design aligns with Salomon soleplate hardware for easy fitment (the screw holes match up).


Hardware

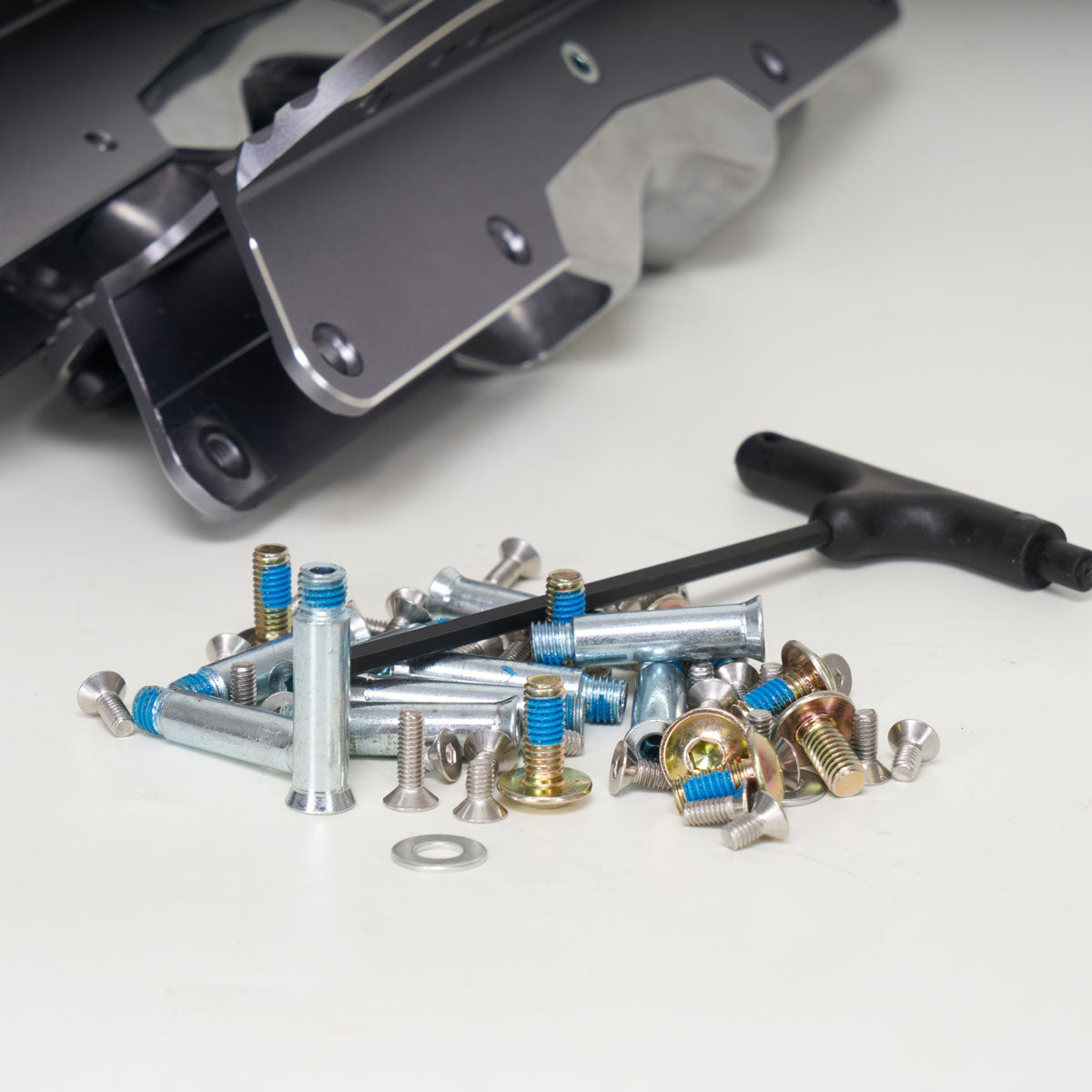

If users intend to modify their boots to attach the soleframe via the solepalte attachment bolts (as opposed to the UFS attachment bolts) the soleframe includes the screws needed but NOT the receiving parts.
