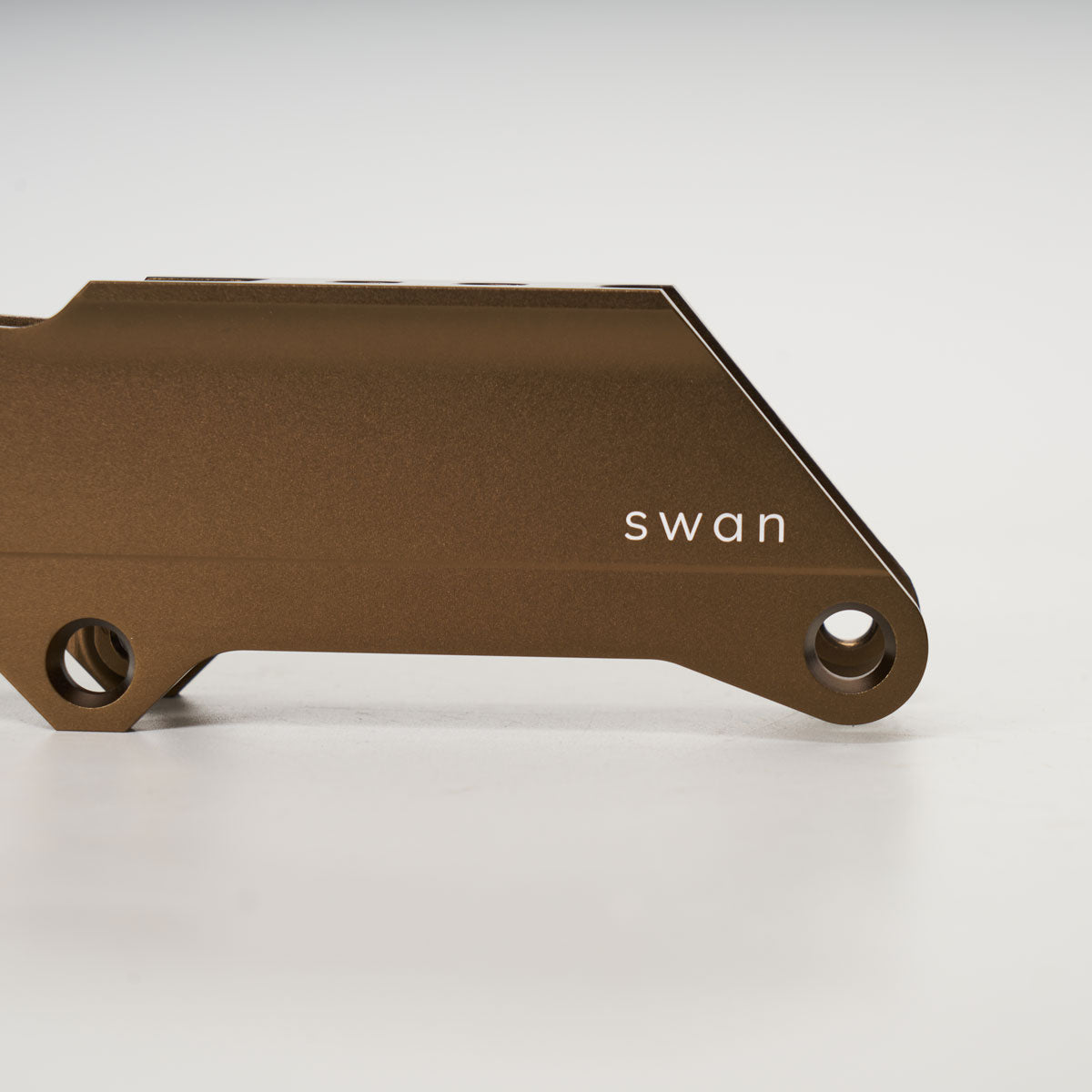

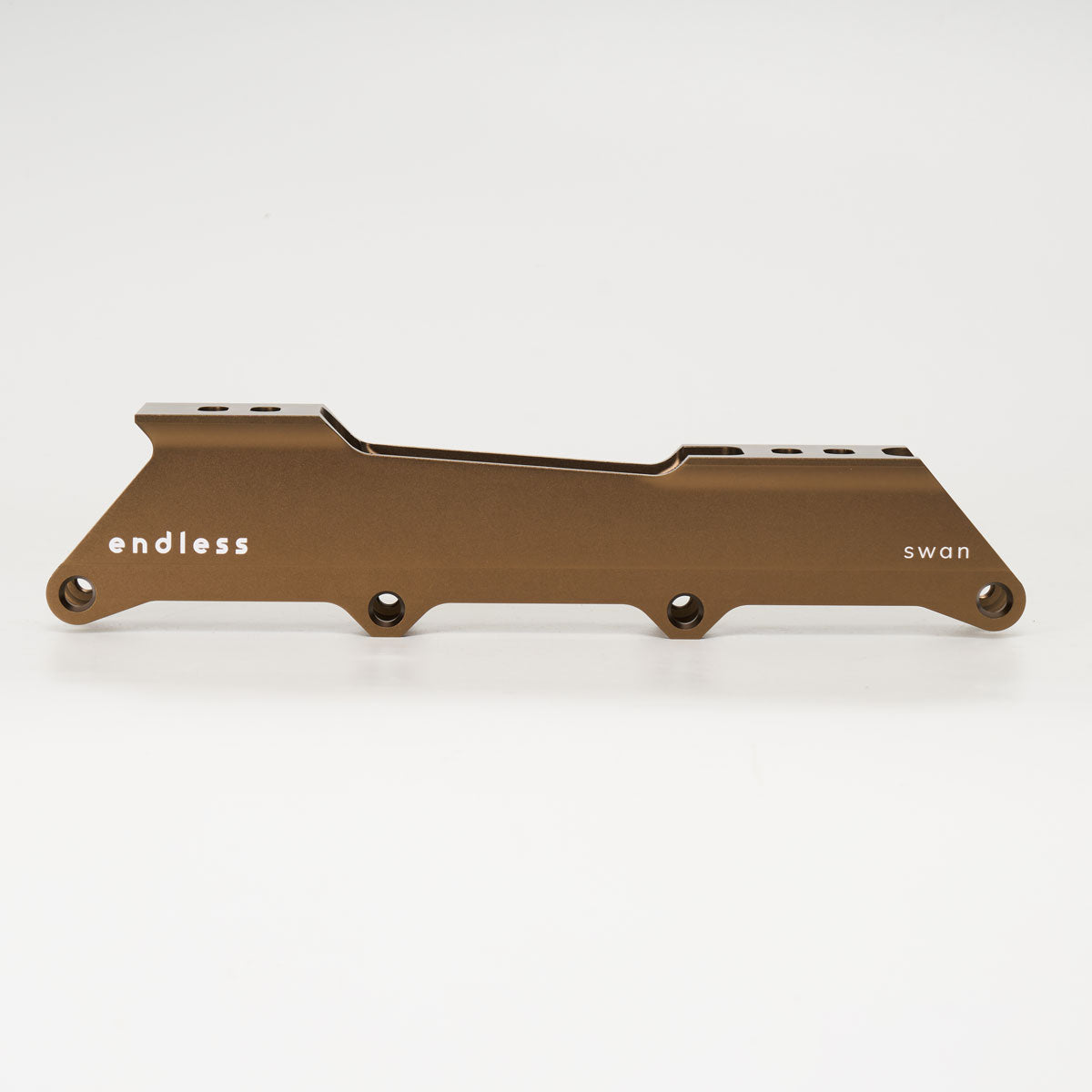

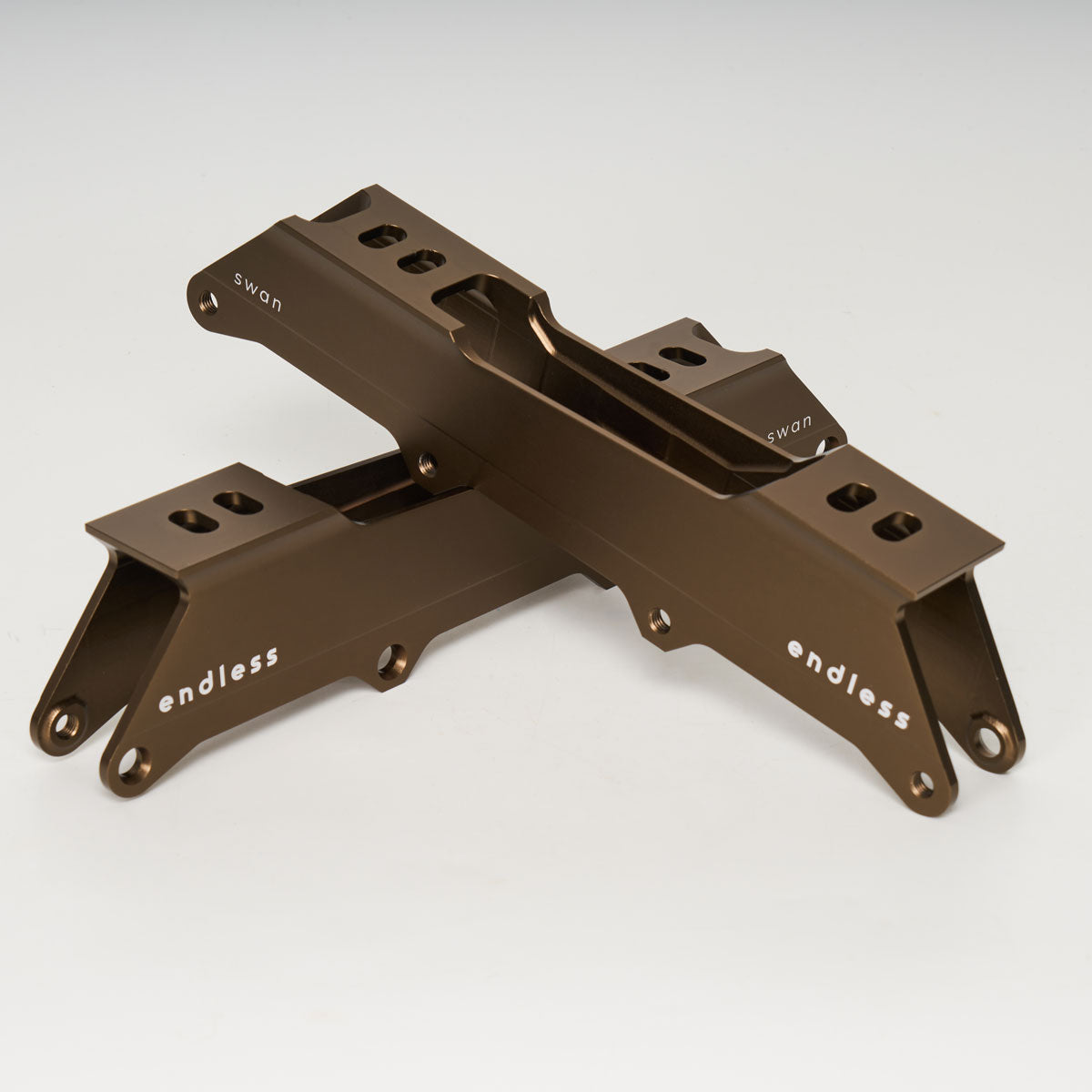

Endless Swan 90/84mm Frames - Bronze
About this product
The Endless Swan Frame is engineered specifically for high impact, obstacle-based urban skating using 165 mm compatible skates. In collaboration with skater Nicholas Swan, Endless created a streamlined design highly optimized for precise maneuvers and jumps, and fearless exploration of the cityscape. The low-riding frame pairs a nimble wheelbase with the expertly-tuned Balanced Rocker for effortless navigation in tricky spots. Endless iterated and tested the design rigorously over the last two years to ensure it was durable enough to stand up to the abuse Nicholas subjects his skates to. The Swan frame is rigid, lightweight, fast, agile, and indestructible.
To enhance performance and stability for jumping and power transfer, this frame includes our patent pending Frame Lock.
IMPORTANT: The wheel configuration of this frame uses 90mm on the outer placement and 84mm on the inner placement. This means you will need 4 x 90mm wheels and 4 x 84mm wheels for the frame to function correctly. Other wheel configurations will not work.
Features
Single setup: 2x90 mm outer wheels + 2x84 mm inner wheel
Maintains compact overall length and low ride height
Ideal for stalls on small rails and obstacles
Balanced Rocker
Frame Locks prevent frame shifting due to hard use
Recommended for all skill levels
Recommended for boot sizes 45 and below
Mounting: 165 mm
Note: on Adapt skates the frames are not optimally centered
Not compatible with UFS boots (including FR Skates UFR)
Wheelbase: 261 mm
Brake compatibility: Powerslide Urban Brake Size M (908058/2)

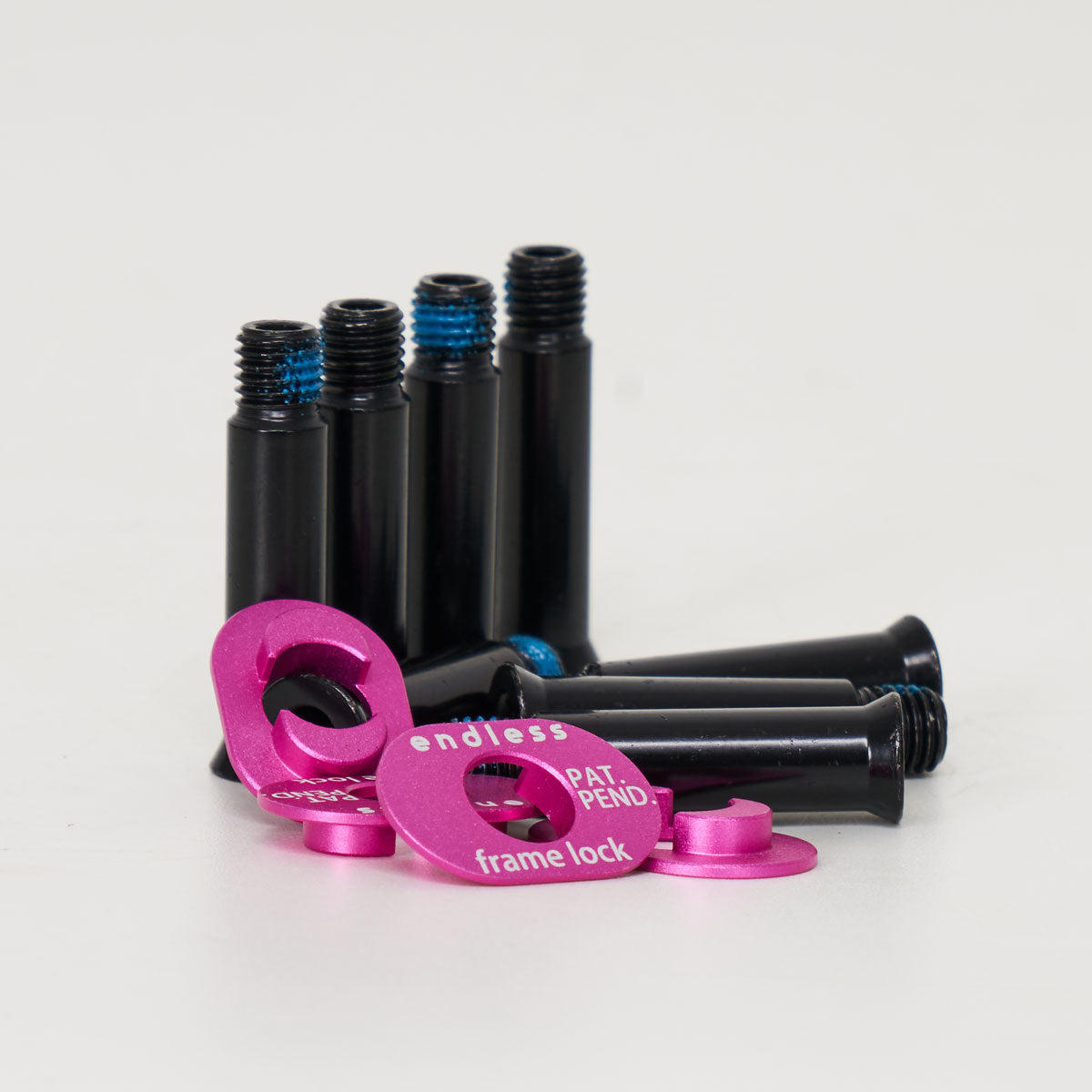

One frame set includes: 2 frames, 8 axles, 4 centered Frame Locks (patent pending)
CNC-machined from 6061-T6 aluminium
Weight = 275 grams, without spacers and axles
Product Specs
Skating style: | Wizard, Urban / City |
Frame mount: | Classic (165 mount) |
Frame material: | Aluminium |
Frame length: | 261mm |
Frame rocker : | Natural Rocker |
Axles: | 8mm speed (one axle that screws into frame wall) |
Wheel size: | 90mm, 84mm |
